10inch wireless nvr kit
- 10inch wireless nvr kit
2.5G wireless nvr
support Wireless camera

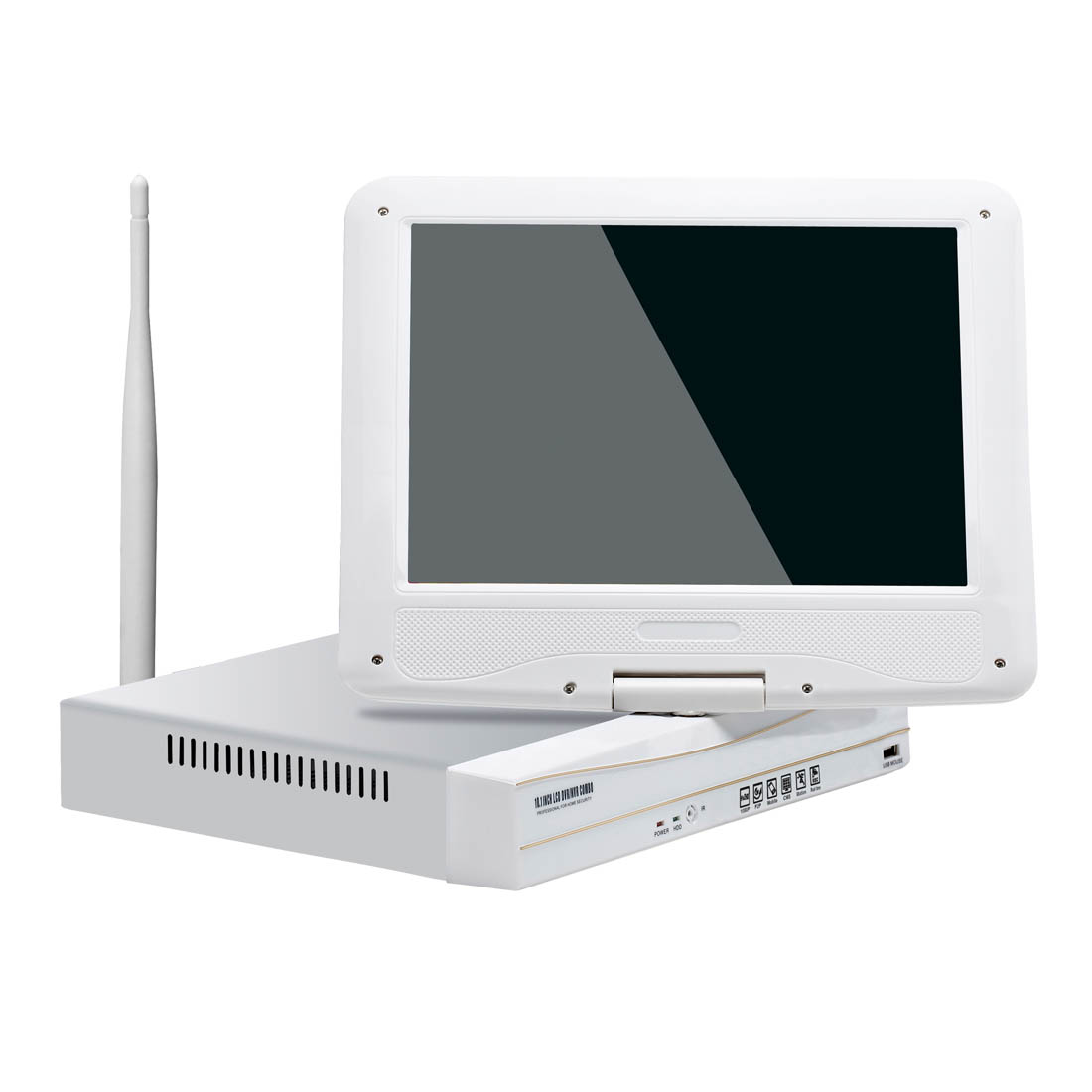

Built in 7inch lcd screen
Oem&ODM

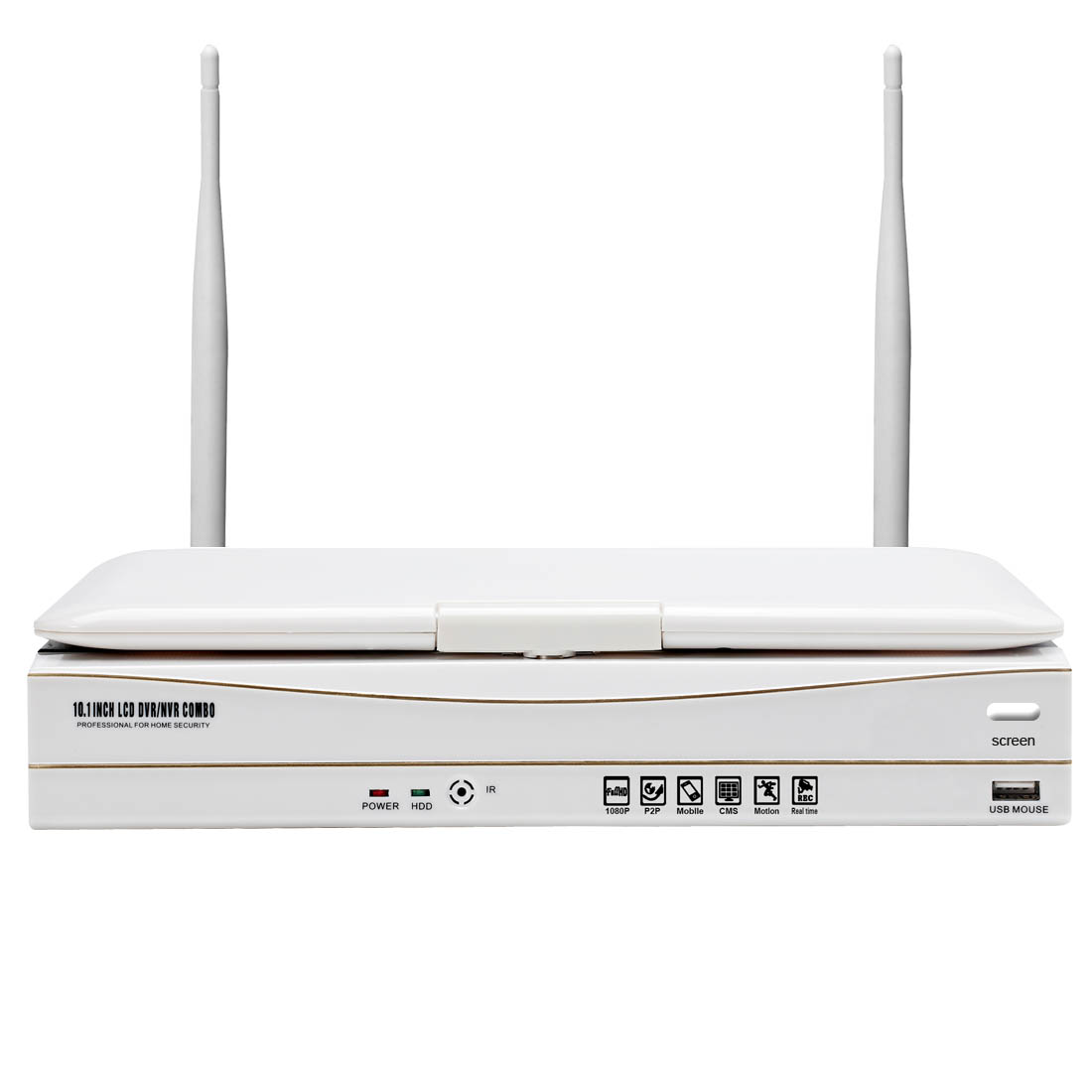

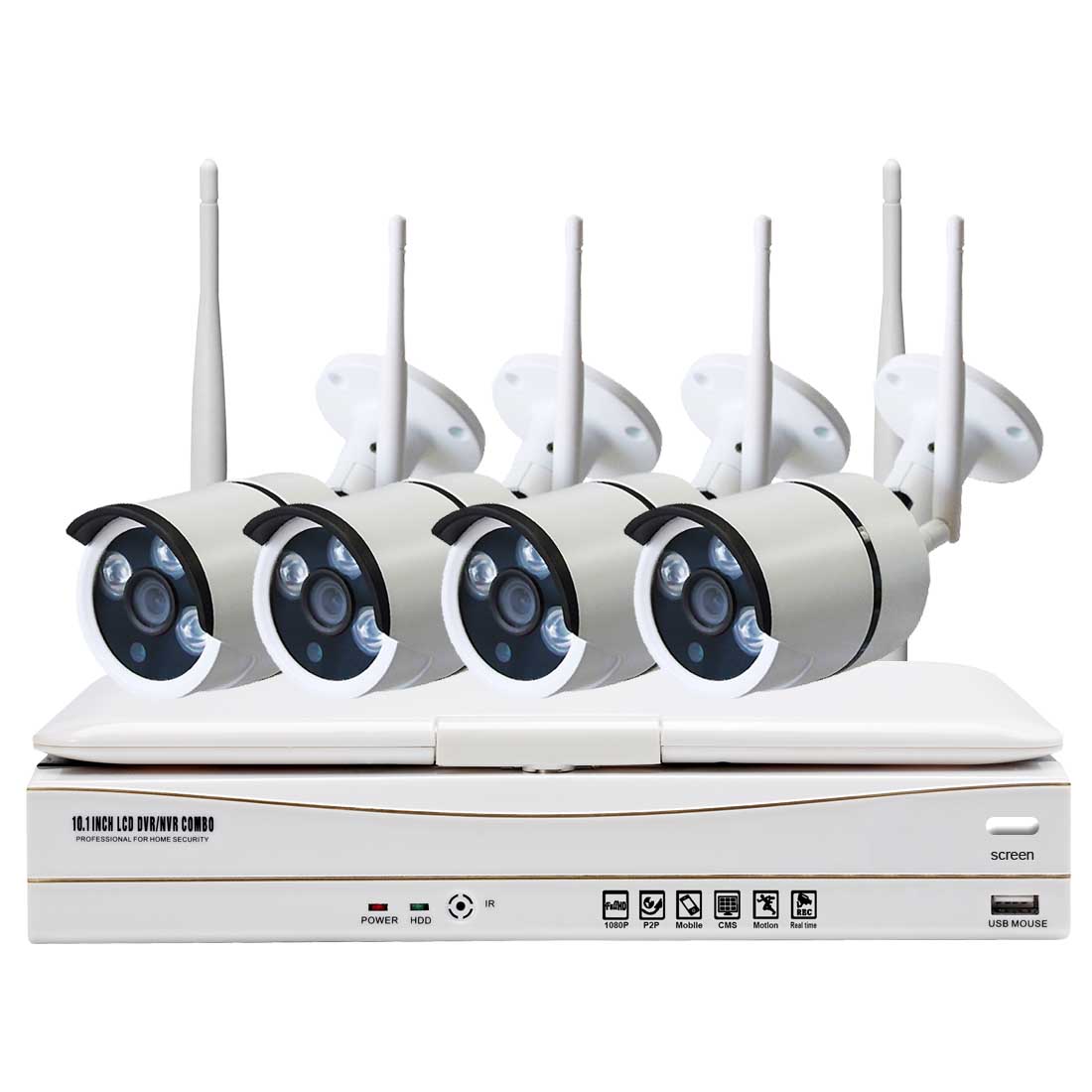

10inch wireless nvr kit

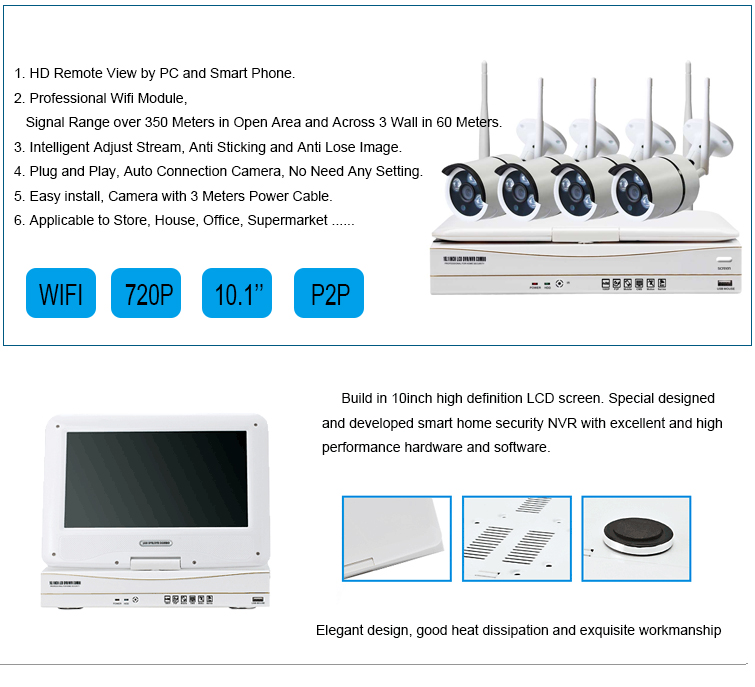

DC TIMES NVR security system is special designed with 7" or 10.1" LCD monitor to realize review your footage easily on the built-in monitor which saves you huge cost for a separate monitor. Instant email alerts only when motion is detected, catching every essential moment, save hard drive record storage. The camera is totally metal material, waterproof for outdoor usage, long night vision distance. IR auto change in day and night. Built in high functional and stability wireless WI-FI rooting module, support 802.11b/g/n protocol,150Mbps
|
Specification：wireless nvr |
||
|
AV(audio/video) input |
Operating System |
Embedded Linux OS |
|
Network Video |
4CH |
|
|
Network video input broadbank |
20Mbps |
|
|
AUdio Bitrate |
64Kbps |
|
|
AV (audio/video) output |
HDMI input |
1ch，resolution：1024x768，1366x768， |
|
VGA output |
1440x900,1920x1080p |
|
|
1ch，resolution：1024x768，1366x768， |
||
|
AV CODEC Specification |
Video Resolution |
1440x900,1920x1080p |
|
synch-playback |
4CH |
|
|
Video Control |
Video/Capture mode |
Maual、Time、Motion、Alarm |
|
Playback mode |
Real time、Routine、Event |
|
|
Backup |
USB backup |
|
|
Alarm |
Alarm Input |
4ch (optional) |
|
Alarm Output |
1ch (optional) |
|
|
Hard Disk |
Type |
1*SATA interface |
|
Max Capacity |
4 TB at most for each |
|
|
External Interface |
Network Interface |
1 adaptable RJ45 10M/100M, 1 WIFI interface |
|
USB Interface |
2 USB 2.0 |
|
|
Network Control |
Protocol |
UPnP (play&plug)/SMTP (email survice)/PPPoE (dial-up) |
|
Others |
Power Supply |
DC12V3A |
|
Power Consumption (W) |
≤5W（Without HDD） |
|
|
Operate Temperature (°C) |
-10℃~+55℃ |
|
|
Working Humidity (%) RH |
10%~90% |
|
|
Size |
280mm（W）×230mm（V）×55mm（H） |
|
|
Weight（excluding HDD） |
≤2.5Kg |
|
|

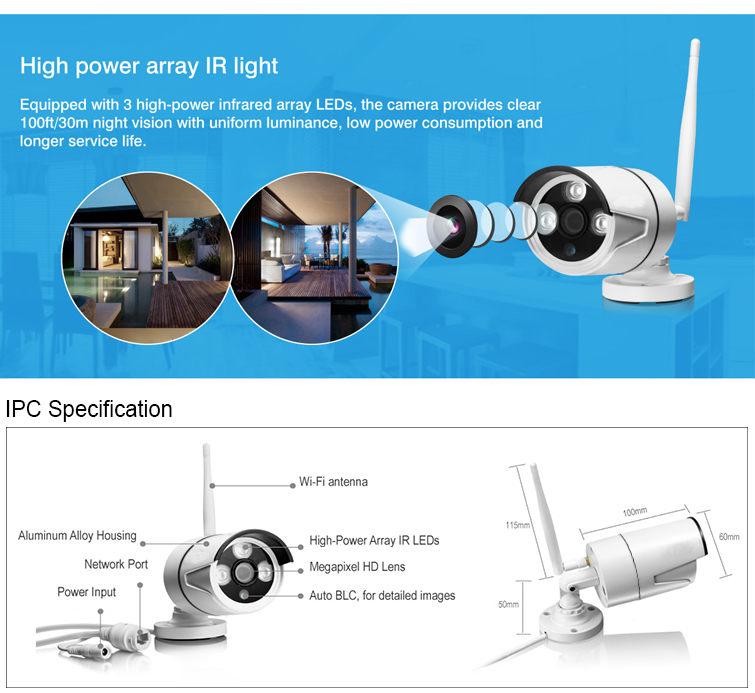

IPC Specification：720p CAMERA |
||
|
Details |
Sensor |
1/4” Progressive Scan Sensor |
|
Signal System |
PAL/NTSC |
|
|
Resolution |
1280 x720 16 : 9 High Defination |
|
|
Minimum illumination |
Color: 0.1 Lux; B/W: 0.01 Lux |
|
|
Shutter |
1/25s to 1/25,000s |
|
|
Lens |
3.6mm |
|
|
OSD |
Date Time & Title |
|
|
White Balance |
Auto |
|
|
Day&Night |
Auto / Color / BW |
|
|
3D-DNR |
Auto |
|
|
Mirror/Flip |
On / Off |
|
|
Frame Specification |
Three Streaming at the Same Time: |
|
|
H.264 1280x720@30fps or below |
||
|
H.264 640x480@30fps or below |
||
|
S/N |
> 39.1 Db |
|
|
Interface |
RJ45 / WIFI 802.11b/g/n |
|
|
General Specification |
Anti-thunder Level |
Standard IEC61000-4-5 |
|
Working Temperature/Humidity |
-10℃ to +50℃ / 30% to 80% RH |
|
|
Working Temperature/Humidity |
-20℃ to +60℃ / 20% to 90% RH |
|
|
Power Input |
DC12V-1A |
|
|
Power consumption |
≤6W |
|
|
Size |
205(L)×70(W)×55 (H)mm |
|
|
Weight |
500g |
|
|
Level of Protection |
IP66 |
|
