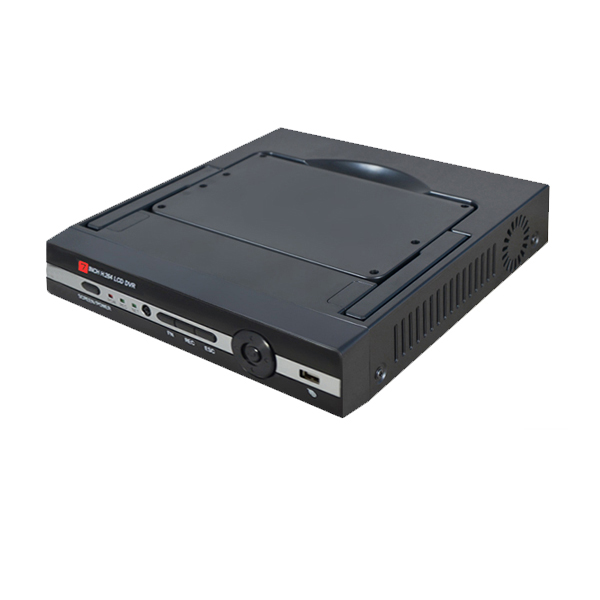

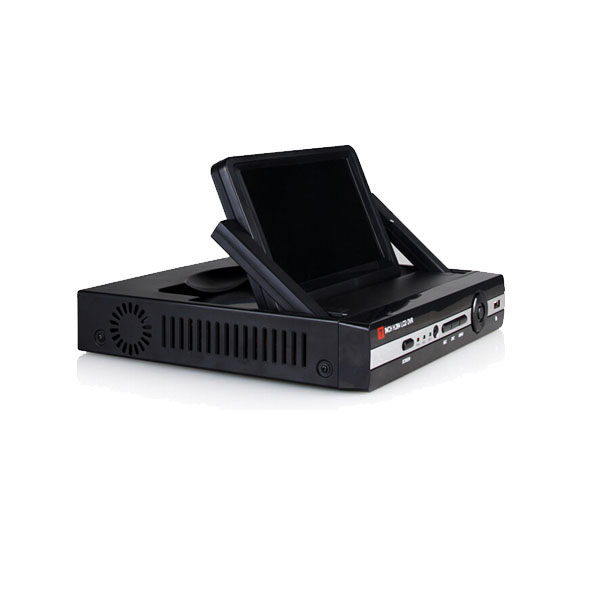

4ch 7inch AHD DVR
4ch 7inch AHD DVR
4ch 7inch AHD DVR
4ch 7inch AHD DVR
4ch 7inch AHD DVR
4ch 7inch AHD DVR
4ch 7inch AHD DVR

4ch 7inch AHD DVR

4ch 7inch AHD DVR
* 4ch 1080N video input

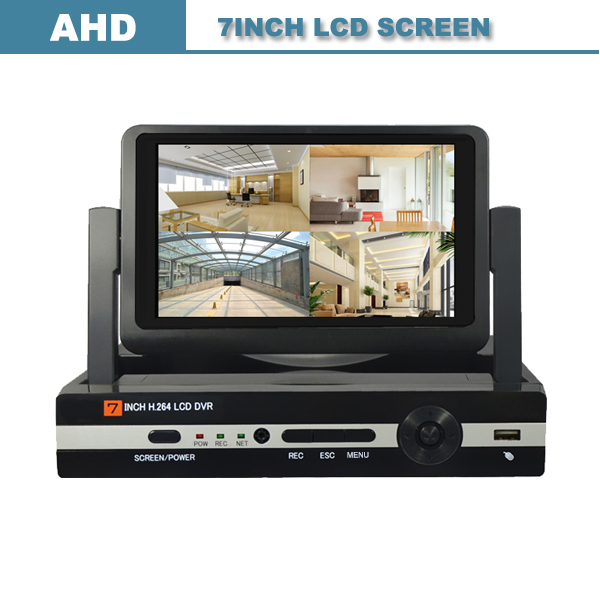

* 7inch LCD screen
* P2P cloud technology
* Save money
( easy installation, no need additional screen)
Produt Details Product Parameter

1


Feature:

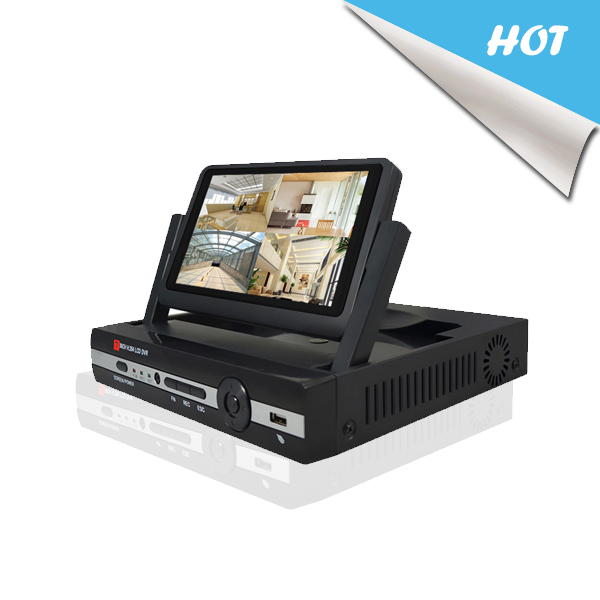

DC AHD DVR security system is special designed with 7" LCD monitor to realize review your footage easily on the built-in monitor which saves you huge cost for a separate monitor
Instant email alerts only when motion is detected, catching every essential moment, save hard drive record storage

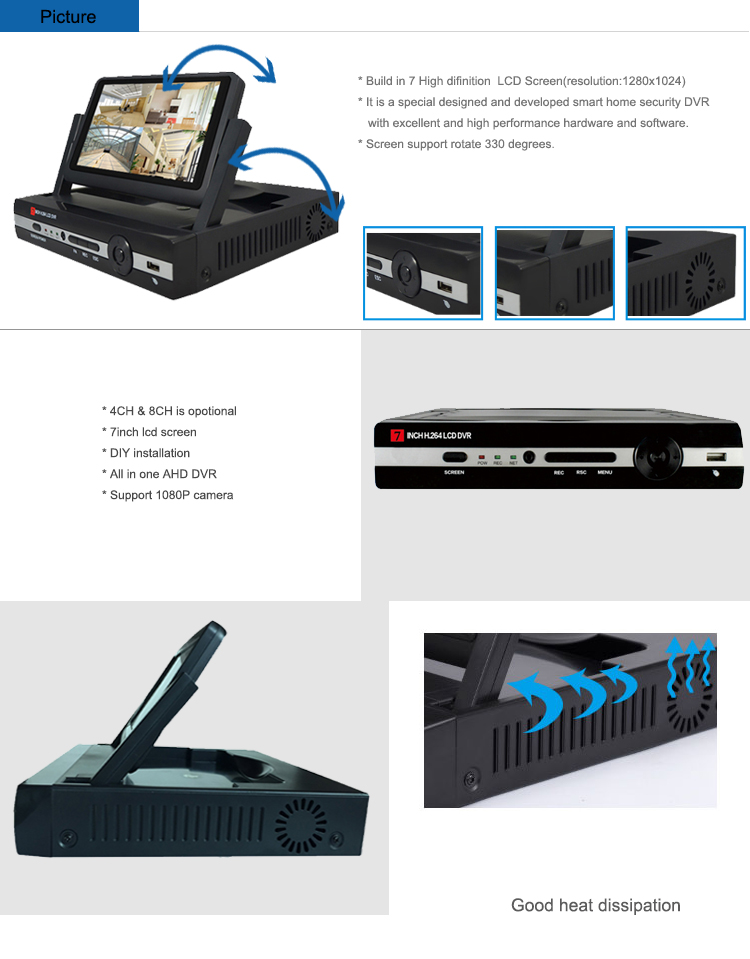

*Built-in LCD screen which is high recolution screen.
*It could be connect HD camera such as 720P, 960P, 1080P
*HD Video format (h.264 or h.265)
*Hard disk for backup (1tb, 2tb, 3tb, Max4tb)
*Realtime playbak
*Applied in large surveillance area such as home, office, bank, supermarket, gas station, factory etc.
*It is a special designed and developed professional portable DVR, with excellent and high performance hardware and software.

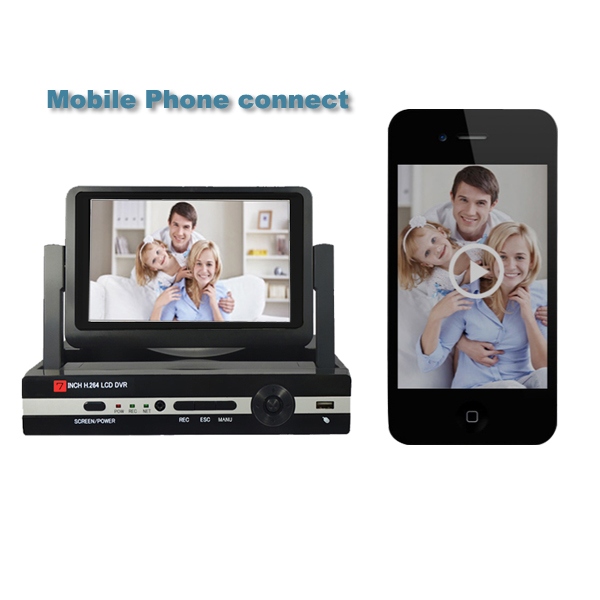

*Support 4ch simultaneous live viewing via smart phone.
*All software are included in the CD, very easy remote network surveillance


2

Specification: 4CH AHD DVR

System

Main processor

Hi3520D

Interface

Preview

4ch

Video

Code

H.264(High Profile)

Monitor quality

HDMI

Encode ability

4*1080N/4*AHD-M

Decode ability

1*1080N/1*AHD-M

Multi-mode input

analog: 4*1080N;4*AHD-M;4*AHD-L;

hybrid: 2*AHD-M(analog)+2*720P(network)

Network only:4*720P;8*1080P;4*1080P;1*1080P;8*720P ;

Motion Detection

Each screen can be set to 192 (16 * 12) detection areas;
multi-level sensitivity can be set (Limited local channel)

Audio

Audio compression

G.711A

Intercom

support

Record & playback

Record mode

manual>alarm>motion detection>timing

Local Playback

AHD-M/AHD-L/D1

Search mode

Search by time, calendar, event, channel

Storage & backup

Video storage

HDD, network

Backup mode

Network, USB hard disk, USB burner, SATA burner

External Interface

Video input

4ch BNC

Video output

1ch VGA, 1ch HDMI

Loop Vout

N/A

Audio I/O

4/1

Alarm I/O

N/A

Network interface

RJ45 10M/100M self-adaption

PTZ control

1*RS485, Support kinds of PTZ protocols

USB

3* USB 2.0 ports

HDD

1*SATA ports (Max4TB/per)

Wireless

N/A

General

Power supply

12V/3A

Power Consumption

<15W (without HDD)

Working environment

Temperature:0—+55,Humidity:10%—90%,
Atm:86kpa—106kpa

Dimension

250mm(L)* 240mm(W)* 46mm(H)

Weight

2.5Kg
