Feature:

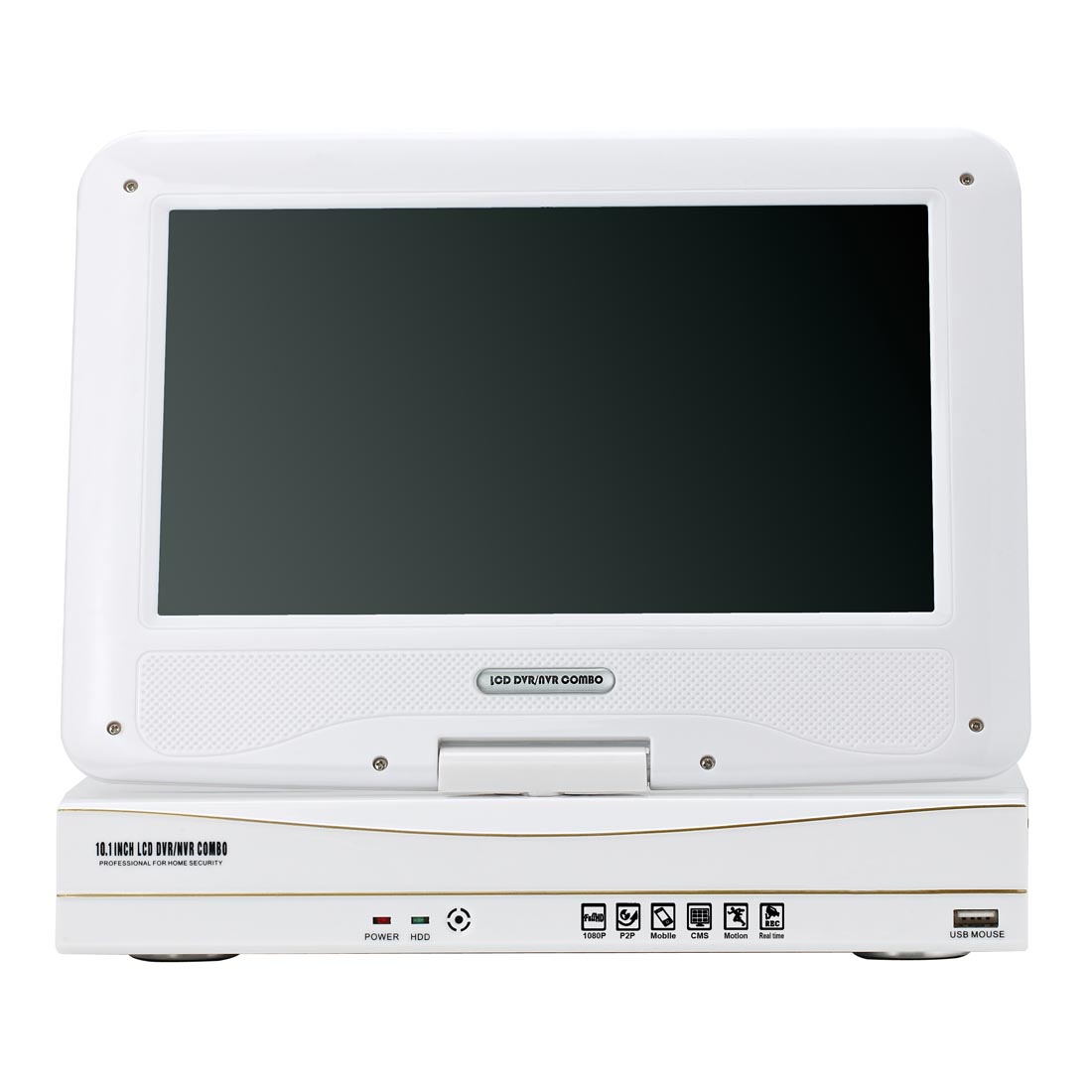

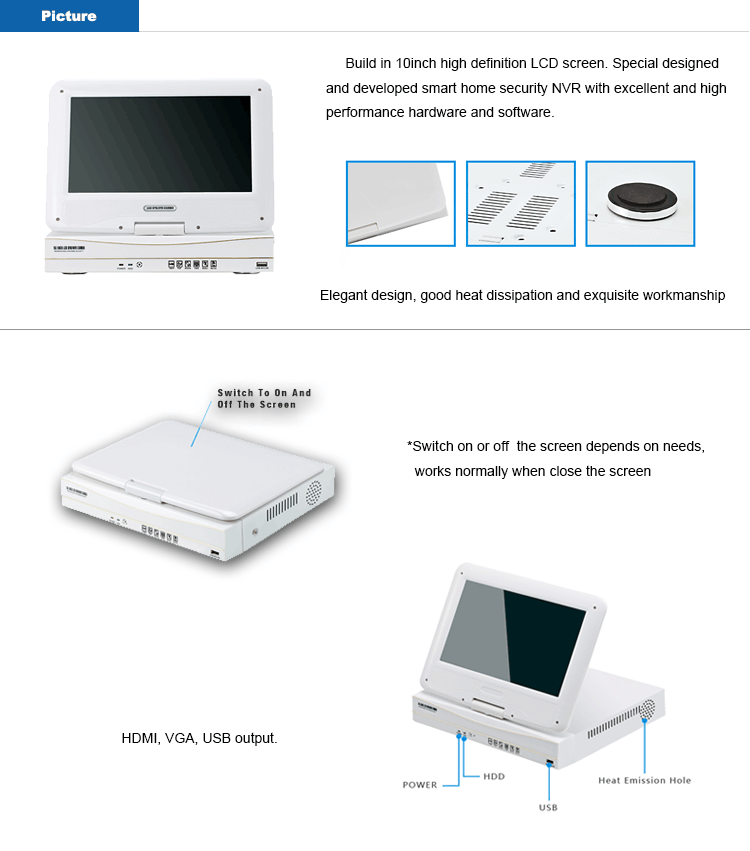

DC TIMES NVR security system is special designed with 7" or 10.1" LCD monitor to realize review your footage easily on the built-in monitor which saves you huge cost for a separate monitor. Instant email alerts only when motion is detected, catching every essential moment, save hard drive record storage.

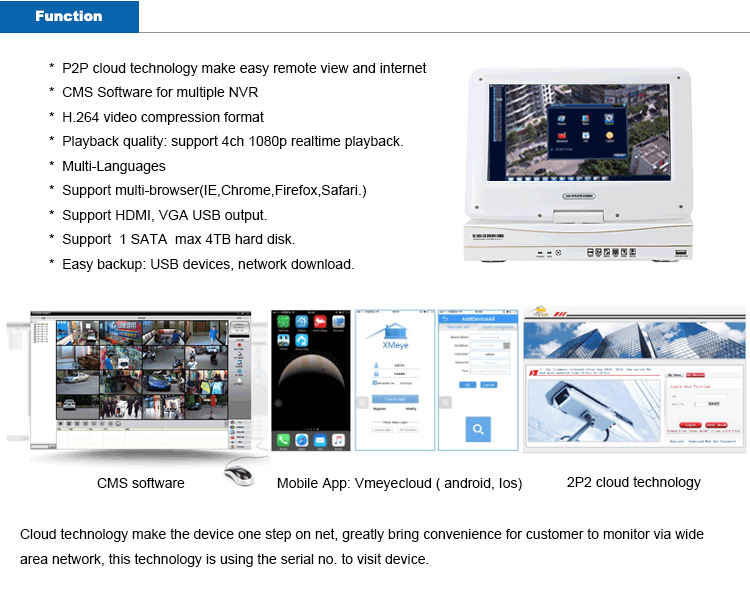

CMS Software for multiple NVR (up to 255 DVR simultaneously)
Playback quality: real-time coding synchronously, real-time multi-channel playback synchronously.
Mobile monitor: support all kinds of mobile monitor (iPhone, Android,iPhone, iPad, Mini Pad, android phones)
Support multi-browser(IE,Chrome,Firefox,Safari.)Support 28 languages: English, Arabic, Russian, Franch, Spanish, German etc.
Support HDMI, VGA output.
Easy backup: USB devices, network download
Cloud Technology make easy remote view by internet and mobile.
Support NTP(Internet timing), DHCP(automatically get IP),Email(mail service),UPNP(Universal Plug and Play).
Support zoom any area selected by the mouse under PELCO-D/P PTZ control protocol.
Support 1 SATA  4TB hard disk.
Support smart search in the self-defined areas in the playback of the recording.
Applied in large surveillance area such as home, office, bank, supermarket, gas station, factory etc.
It is a special designed and developed professional portable DVR, with excellent and high performance hardware and software.
All software are included in the CD, very easy remote network surveillance.

Specification

System

Main processor

Hi3515C

Operating system

Embedded LINUX operating system

System resources

Simultaneous multi-channel real-time recording, playback, network operation, USB backup

Interface

Operator interface

16-bit true color graphic menu operation interface,
support mouse operation

Preview

1/4 screen

Video

Video input (IP)

4ch 1080P/ 8ch D1

Video compression

H.264

Display quality

Max1920*1080

Playback quality

1080P/D1

Decode

1ch1080P

Motion detection

Support(depend on camera)

Audio

Audio compression

G.711A

Record & playback

Intercom

Unsupport

Recording mode

Manual>Alarm>Dynamic Detection>Timing

Local payback

1*1080P;4*720P

Storage & Backup

Search mode

Search by Time/Calendar/Event/Channel

Space occupation

Video:CIF 4~5G/day*channel, D1 8~10G/day*channel;960H 12G~20G/day*channel
720p 20~30G/day*channel; 1080P~40G/day*channel
Audio: 691.2M/day*channel

Record storage

HDD、Network

External interface

Backup mode

Network backup, USB hard disk, USB burner, SATA burner

Video output

1ch HDMI output

Audio I/O

0/0

Alarm I/O

0/0

Network interface

1*RJ45 10M/100M, self-adaption

USB interface

3*USB2.0

General

HDD

1*SATA HDD(Max:4T)

PTZ control

Control PTZ device by network

ONVIF

Support

Power supply

12V/3A

Power Consumption

<15W(Without HDD)

Operating temperature

-20℃ ~ +55℃

Weight

2.5KG
