Feature:

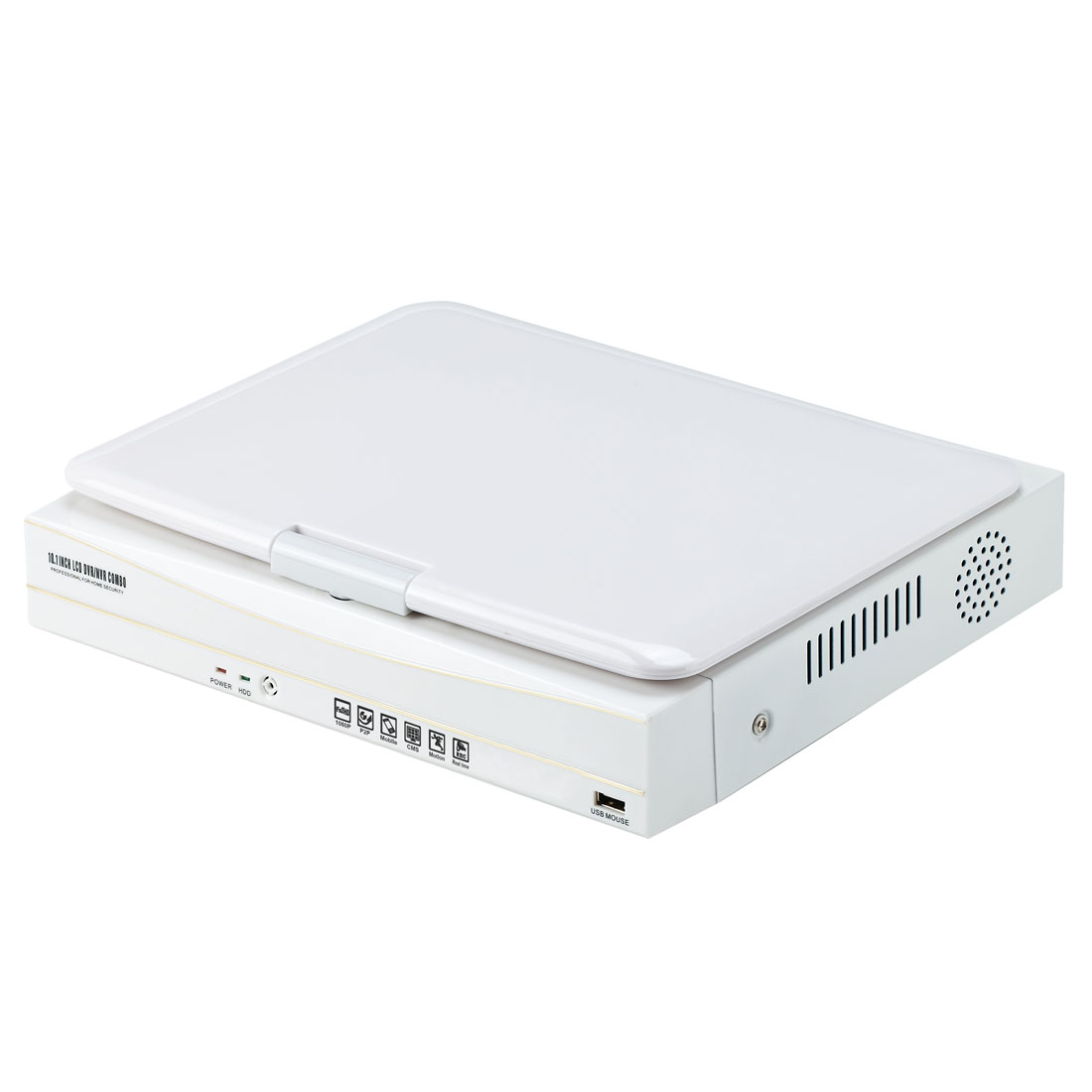

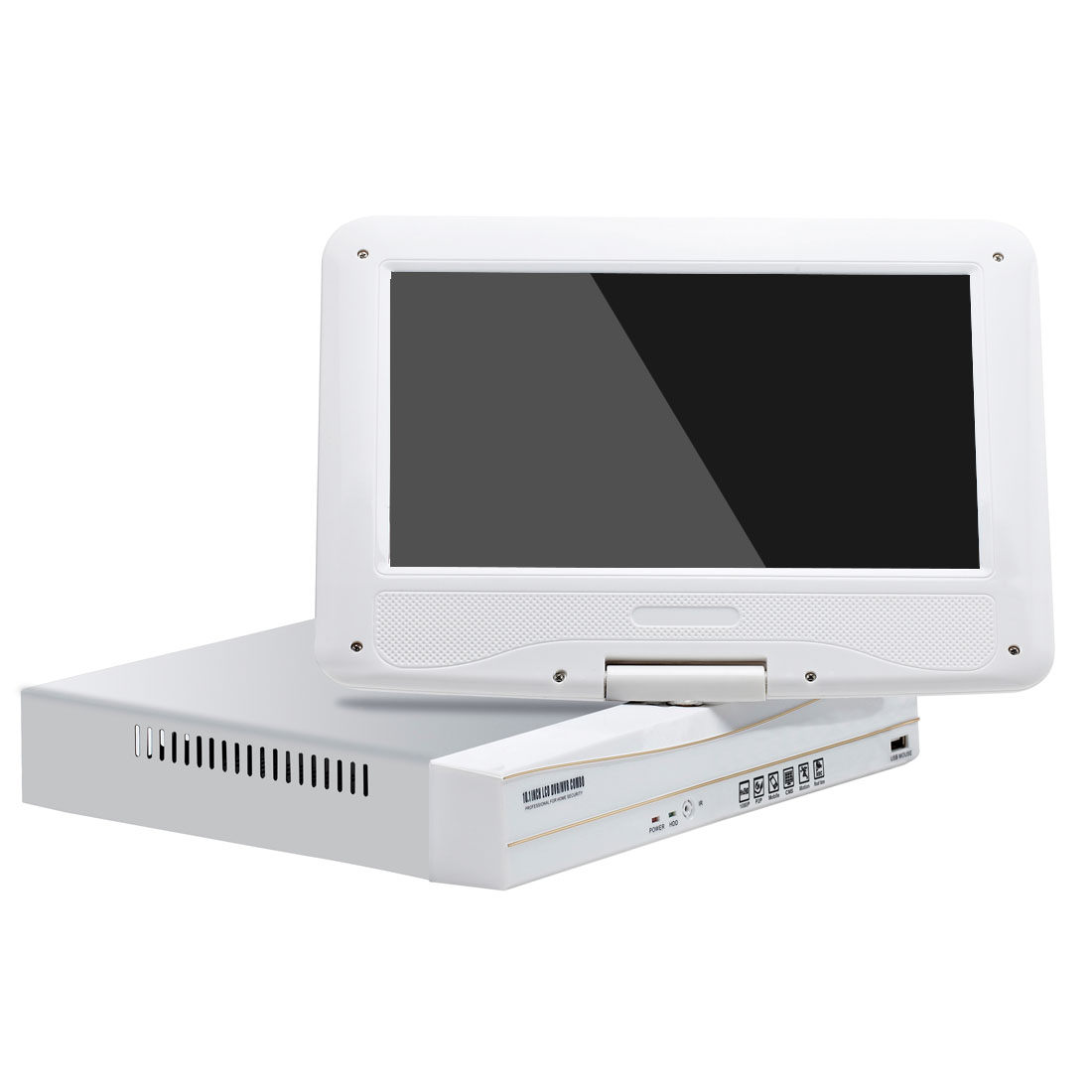

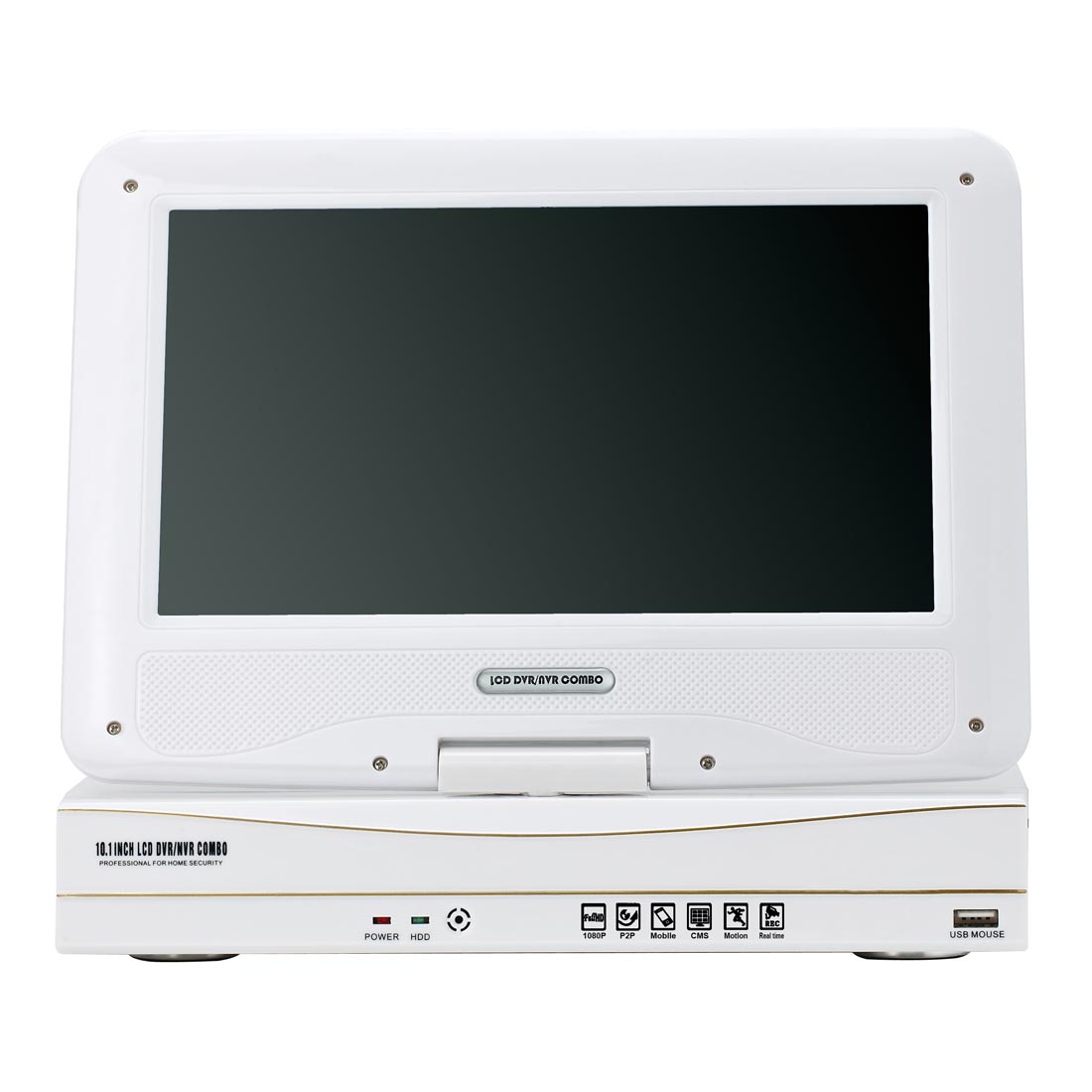

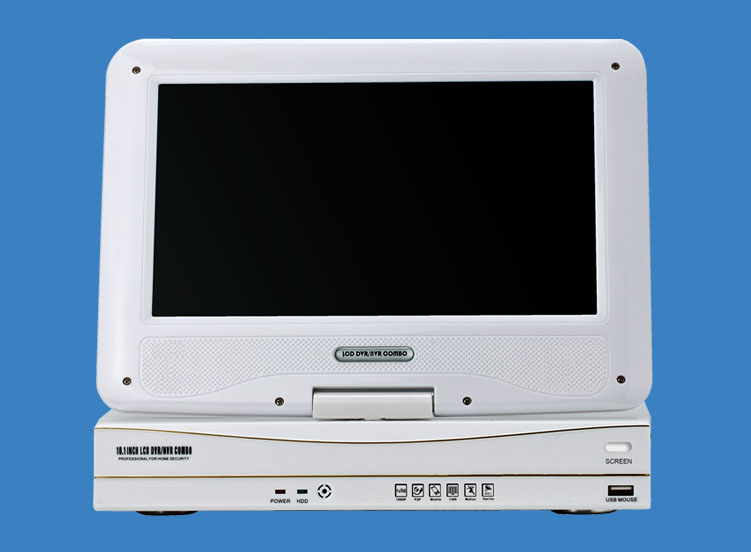

DC TIMES NVR security system is special designed with 7" or 10.1" LCD monitor to realize review your footage easily on the built-in monitor which saves you huge cost for a separate monitor. Instant email alerts only when motion is detected, catching every essential moment, save hard drive record storage.

• CMS Software for multiple NVR (up to 255 DVR simultaneously)
• Playback quality: real-time coding synchronously, real-time multi-channel playback synchronously.
• Mobile monitor: support all kinds of mobile monitor (iPhone, Android,iPhone, iPad, Mini Pad, android phones)
• Support multi-browser(IE,Chrome,Firefox,Safari.)
• Support 28 languages: English, Arabic, Russian, Franch, Spanish, German etc.
• Support HDMI, VGA output.
• Easy backup: USB devices, network download
• Cloud Technology make easy remote view by internet and mobile.
• Support NTP(Internet timing), DHCP(automatically get IP),Email(mail service),UPNP(Universal Plug and Play).
• Support zoom any area selected by the mouse under PELCO-D/P PTZ control protocol.
• Support 1 SATA 4TB hard disk.
• Support smart search in the self-defined areas in the playback of the recording.
• Applied in large surveillance area such as home, office, bank, supermarket, gas station, factory etc.
• It is a special designed and developed professional portable DVR, with excellent and high performance hardware and software.
• All software are included in the CD, very easy remote network surveillance

Specification

System

Main processor

Hi3520D

Operating system

Embedded LINUX operating system

System resources

Simultaneous multi-channel real-time recording, playback, network operation, USB backup

Interface

Operator interface

16-bit true color graphic menu operation interface, support mouse operation

Preview

1/4/8/9 screen

Video

Video input (IP)

8/4ch 1080P,8/4ch 720P

Video compression

H.264

Display quality

Max1920*1080

Playback quality

1080P/720P

Decode

2ch1080P

Motion detection

Support(depend on camera)

Audio

Audio compression

G.711A

Record

&

playback

Intercom

Unsupport

Recording mode

Manual>Alarm>Dynamic Detection>Timing

Local payback

2*1080P;4*720P

Storage

&

Backup

Search mode

Search by Time/Calendar/Event/Channel

Space occupation

Video:CIF 4~5G/day*channel, D1 8~10G/day*channel;960H 12G~20G/day*channel
720p 20~30G/day*channel; 1080P~40G/day*channel
Audio: 691.2M/day*channel

Record storage

HDD、Network

External interface

Backup mode

Network backup, USB hard disk, USB burner, SATA burner

Video output

1ch HDMI output

Audio I/O

0/0

Alarm I/O

0/0

Network interface

1*RJ45 10M/100M, self-adaption

USB interface

3*USB2.0

General

HDD

1*SATA HDD(Max:4T)

PTZ control

Control PTZ device by network

ONVIF

Support

Power supply

12V/3A

Power Consumption

<15W(Without HDD)

Operating temperature

-20℃ ~ +55℃

Weight

2.5KG
