Produt Details Product Parameter

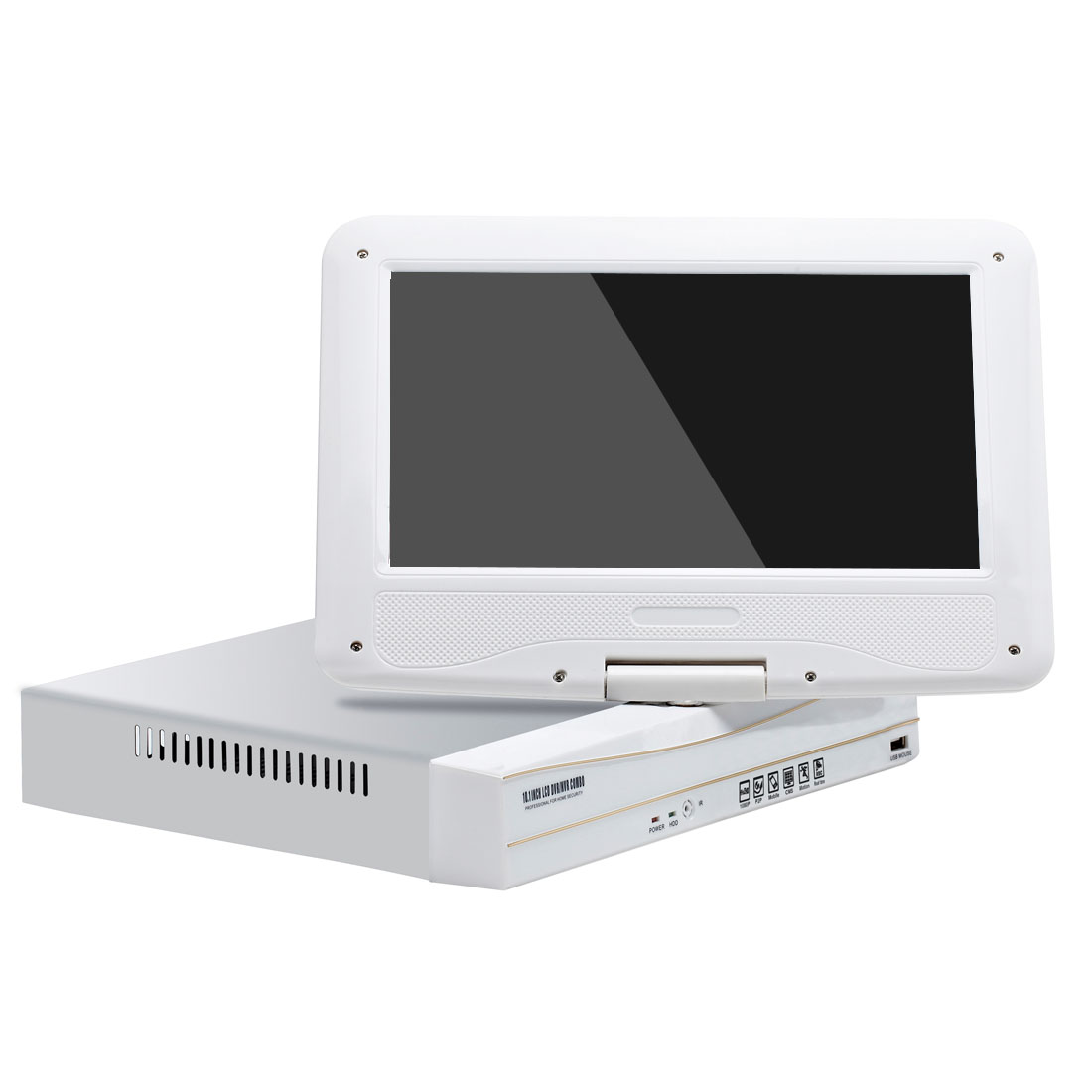

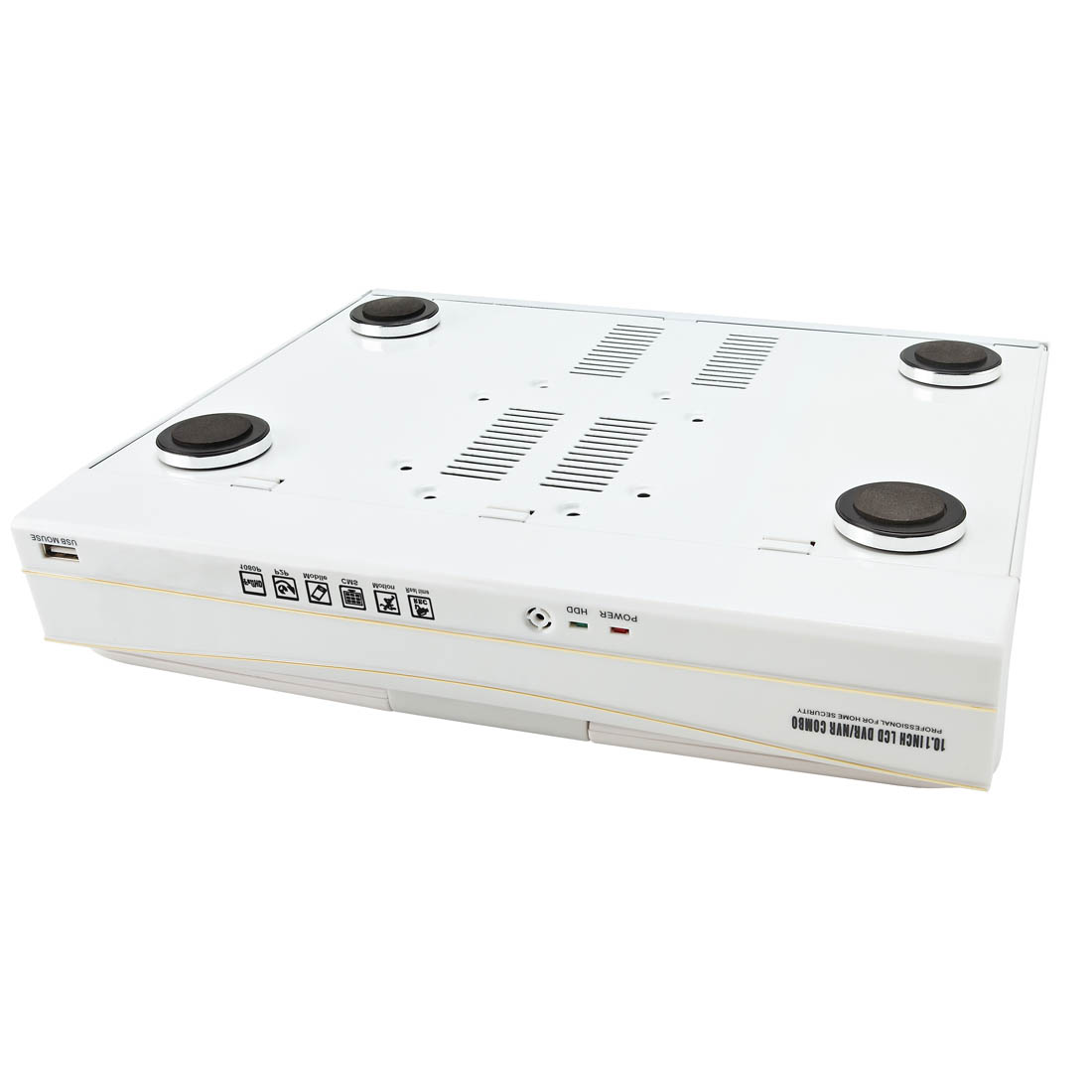

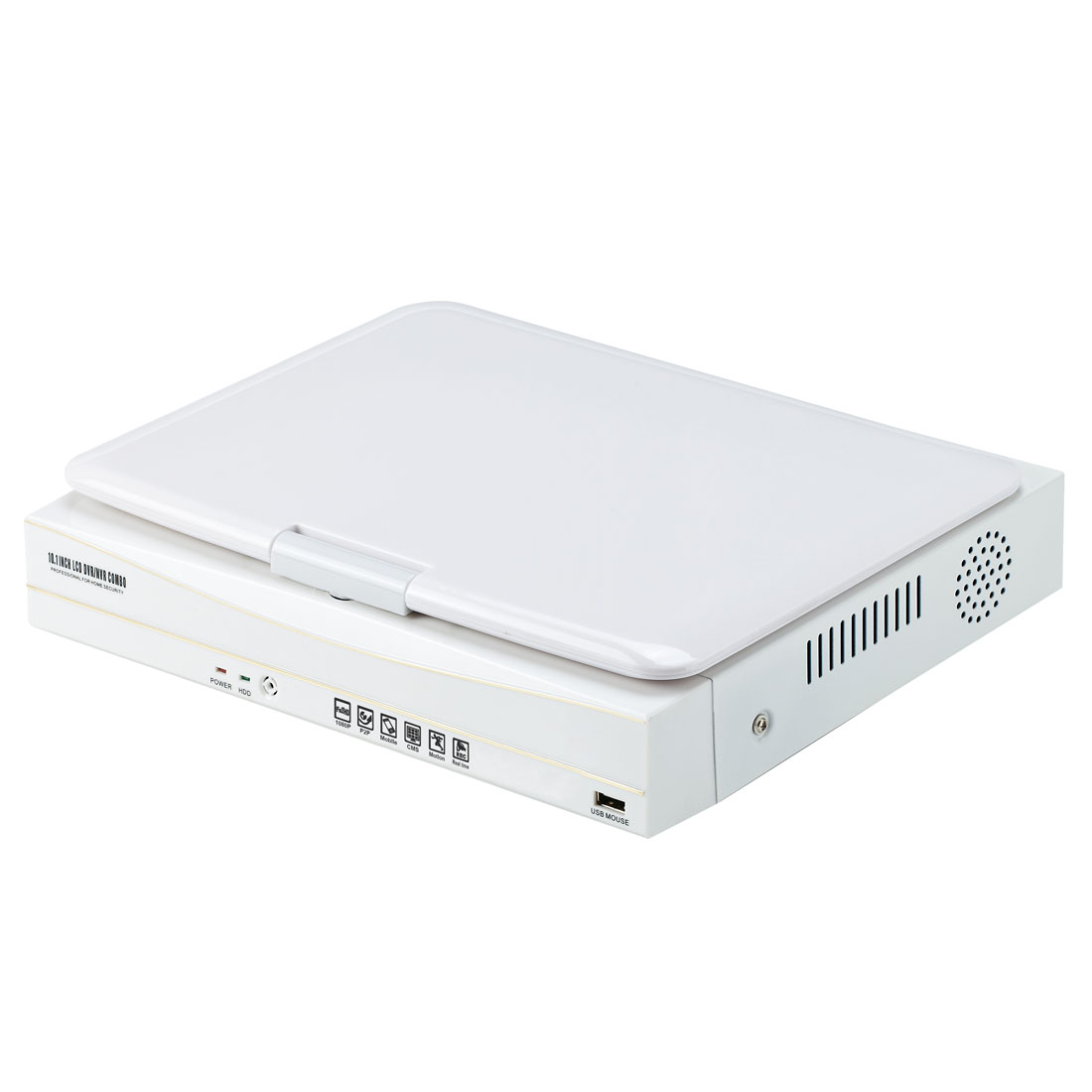

cctv camera system with 10inch ahd dvr



  • Built-in 10 inch LCD up to 4 cameras with HD display
  • Build in 10 inch High difinition LCD Screen(resolution:1280x1024)
  • CMS Software for multiple AHD DVR (up to 255 DVR simultaneously)
  • Support HDMI, VGA output.
  • Easy backup: USB devices, network download
  • Cloud Technology make easy remote view by internet and mobile.
  • Support NTP(Internet timing), DHCP(automatically get IP),Email(mail service),UPNP(Universal Plug and Play).
  • Support zoom any area selected by the mouse under PELCO-D/P PTZ control protocol.
  • Support 1 SATA 4TB hard disk.
  • Support smart search in the self-defined areas in the playback of the recording

cctv-camera-system



System Main processor Hi3521
Interface Preview 1/4/8/9
Video Code H.264High Profile
Encode ability 8*1080N@15fps/8*AHD-M
Decode ability 1*1080N@15fps/1*AHD-M
Multi-mode input analog: 8*1080N;8*AHD-M;4*AHD-M;8*AHD-L;
hybrid: 4*AHD-M
analog+4*720Pnetwork
Network only:8*720P;2*1080P+2*720P;
Record & playback Record mode manual>alarm>motion detection>timing
Local Playback AHD-M/AHD-L/D1
Storage & backup Video storage HDD, network
Backup mode Network, USB, hard disk, USB burner, SATA burner
External Interface Video input 8ch BNC
Video output 1ch VGA, 1ch HDMI
Network interface RJ45 10M/100M self-adaption
PTZ control 1*RS485, Support kinds of PTZ protocols
USB 3* USB 2.0 ports
HDD 1*SATA ports (Max4TB/per)
General HDD 1*SATA HDD(Max:4T)
PTZ control Control PTZ device by network

cctv-camera-system

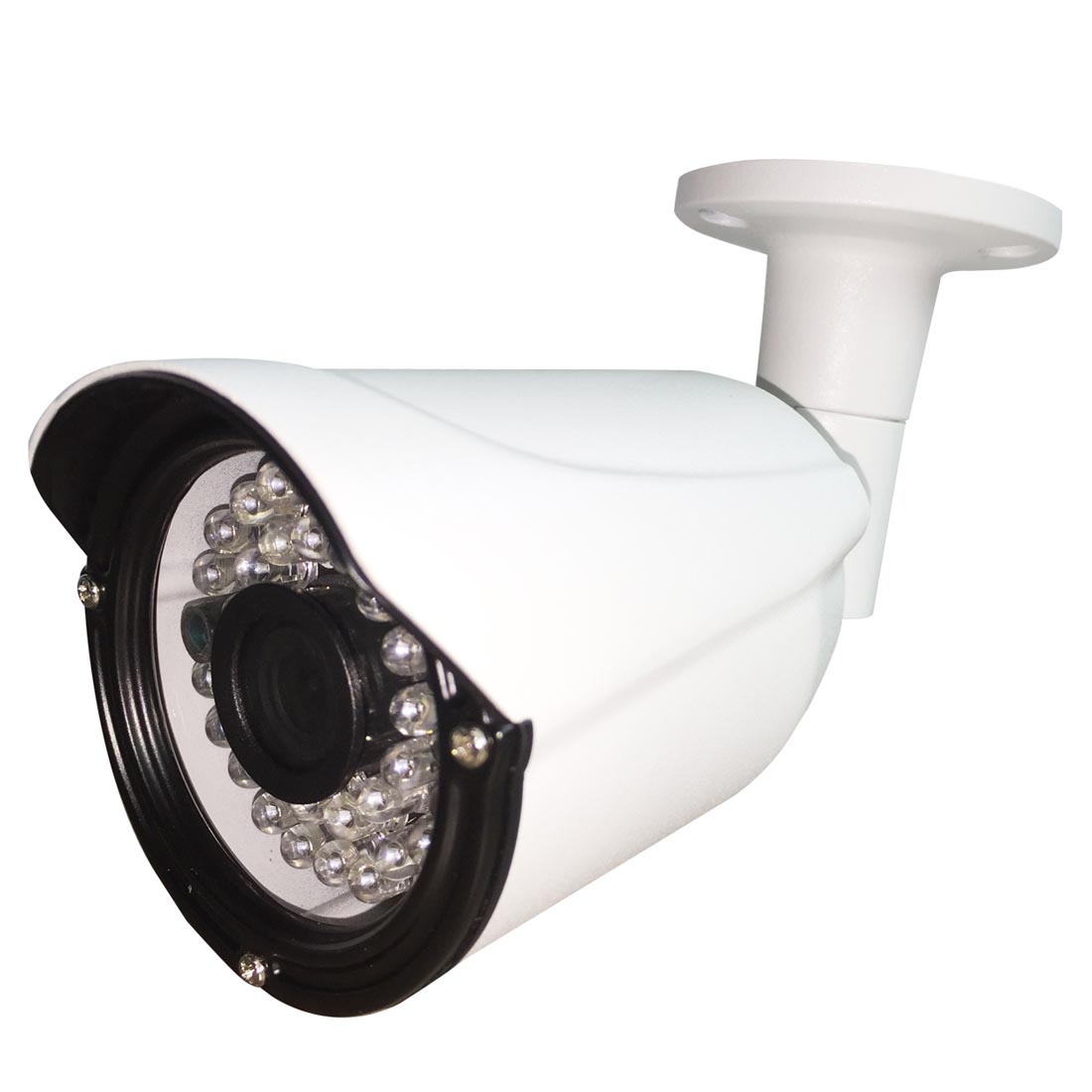

HD Camera Specification

1 Mega Pixel

Details

Sensor

1/3” Progressive Scan Sensor

Signal System

PAL / NTSC

Resolution

1280 x720 16 : 9 High Defination

Minimum illumination

Color: 0.1 Lux; B/W: 0.01 Lux

Shutter

1/25s to 1/25,000s

Lens

3.6mm

OSD

Date Time & Title

White Balance

Auto

Day&Night

Auto / Color / BW

3D-DNR

Auto

Mirror/Flip

On / Off

Frame Specification

Three Streaming at the Same Time:
H.264 1280x720@30fps or below
H.264 640x480@30fps or below

S/N

> 39.1 Db

Interface

BNC

General Specification

Working Temperature/Humidity

-10 to +50 / 30% to 80% RH

Working Temperature/Humidity

-20 to +60 / 20% to 90% RH

Power Input

DC12V

Power consumption

≤6W

Weight

400g




Our Services

· Stay in front of the market, bring you the latest / most-popular / best-cost CCTV products.

· Welcome OEM/ODM projects, offer professional surveillance solutions according to your needs.

· Maintain fast & convenient & low-cost delivery.

· Offer professional after-sales service and technical support.

· Welcome Small orders, Let's join and grow up together.
