Surveillance dvr | H.264 Surveillance dvr | 4CH Surveillance dvr
Analog Modulation, Hybrid Modulation
4ch 720P ahd dvr
Patent design
OEM & ODM
Produt Details Product Parameter



Surveillance dvr | H.264 Surveillance dvr | 4CH Surveillance dvr

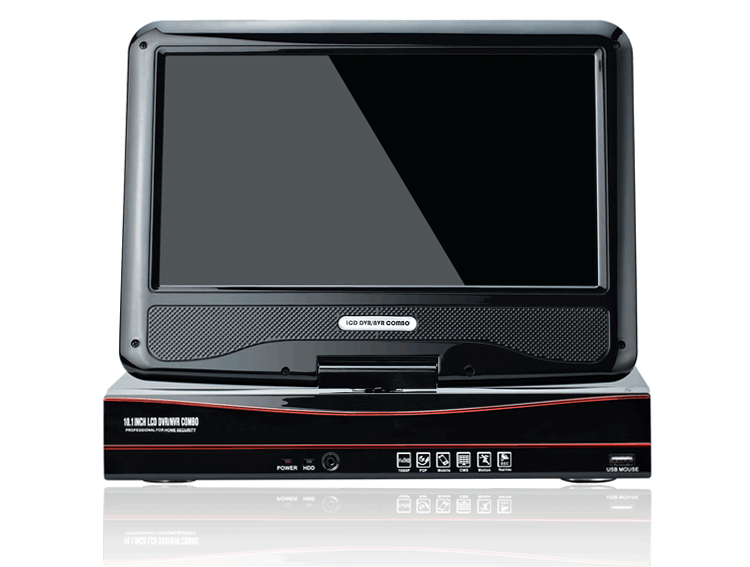

AHD-DVR-A1-白_02



Feature:

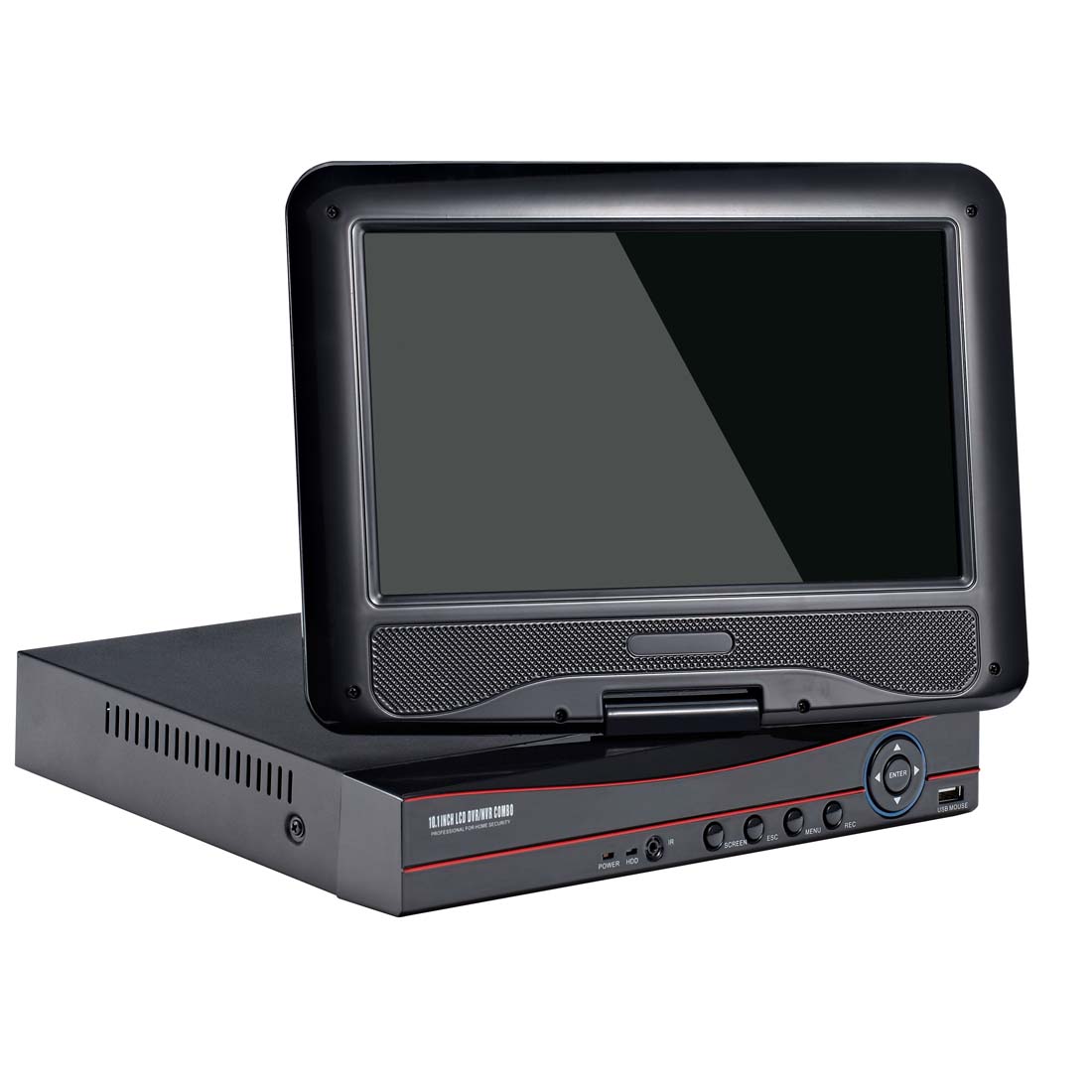

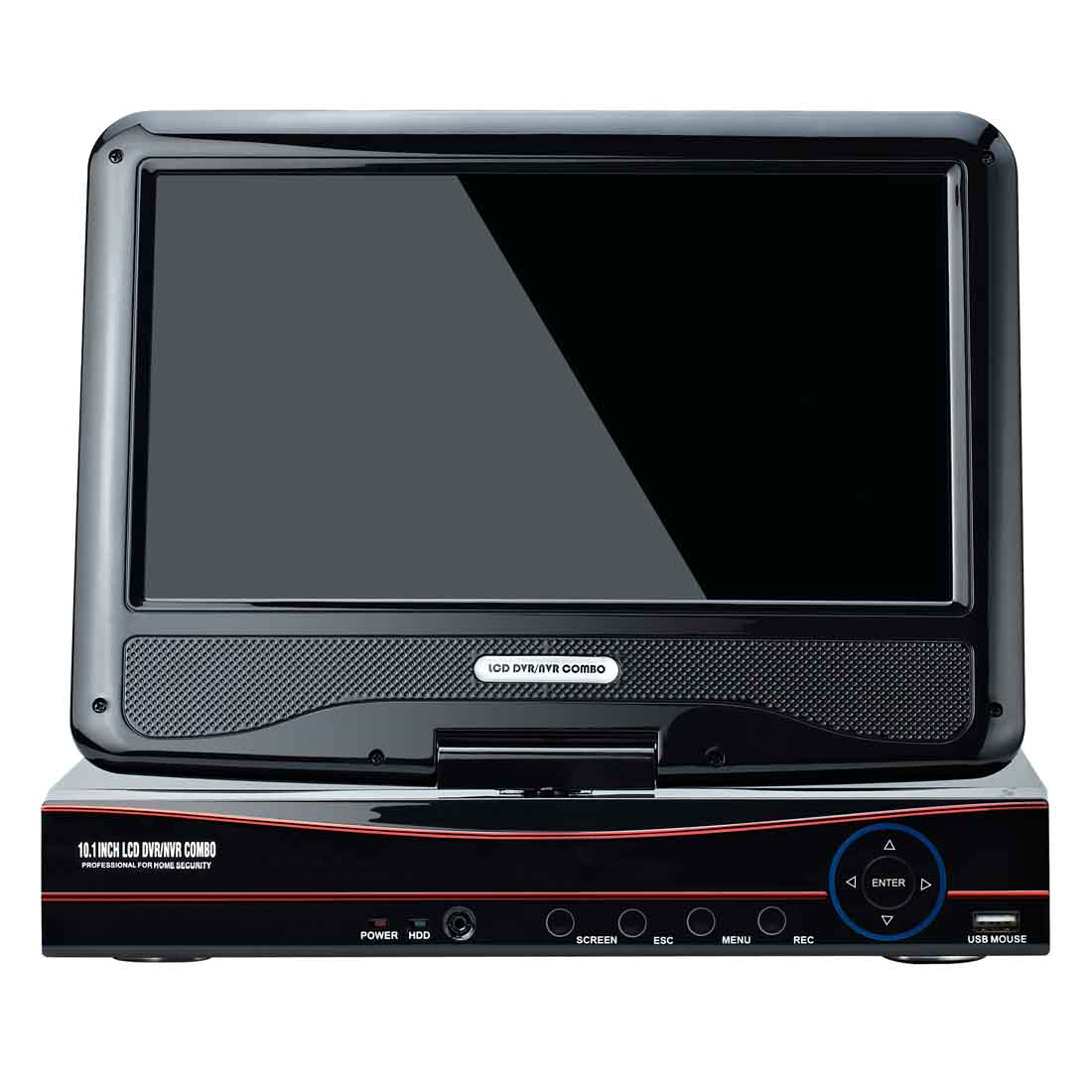

DC AHD DVR security system is special designed with 10.1" LCD monitor to realize review your footage easily on the built-in monitor which saves you huge cost for a separate monitor,Instant email alerts only when motion is detected, catching every essential moment, save hard drive record storage
*Built-in LCD screen which is high recolution screen.
*It could be connect HD camera such as 1080P
*HD Video format (h.264 or h.265)
*Hard disk for backup
*Realtime playbak
*Applied in large surveillance area such as home, office, bank, supermarket, gas station, factory etc.
*It is a special designed and developed professional portable DVR, with excellent and high performance hardware and software.
*Support 4ch simultaneous live viewing via smart phone.
*All software are included in the CD, very easy remote network surveillance



Specification: 4CH AHD DVR

System

Main processor

Hi3520D

Interface

Preview

4ch

Video

Code

H.264(High Profile)

Monitor quality

HDMI

Encode ability

4*1080N/4*AHD-M

Decode ability

1*1080N/1*AHD-M

Multi-mode input

analog: 4*1080N;4*AHD-M;4*AHD-L;

hybrid: 2*AHD-M(analog)+2*720P(network)

Network only:4*720P;8*1080P;4*1080P;1*1080P;8*720P ;

Motion Detection

Each screen can be set to 192 (16 * 12) detection areas;
multi-level sensitivity can be set (Limited local channel)

Audio

Audio compression

G.711A

Intercom

support

Record & playback

Record mode

manual>alarm>motion detection>timing

Local Playback

AHD-M/AHD-L/D1

Search mode

Search by time, calendar, event, channel

Storage & backup

Video storage

HDD, network

Backup mode

Network, USB hard disk, USB burner, SATA burner

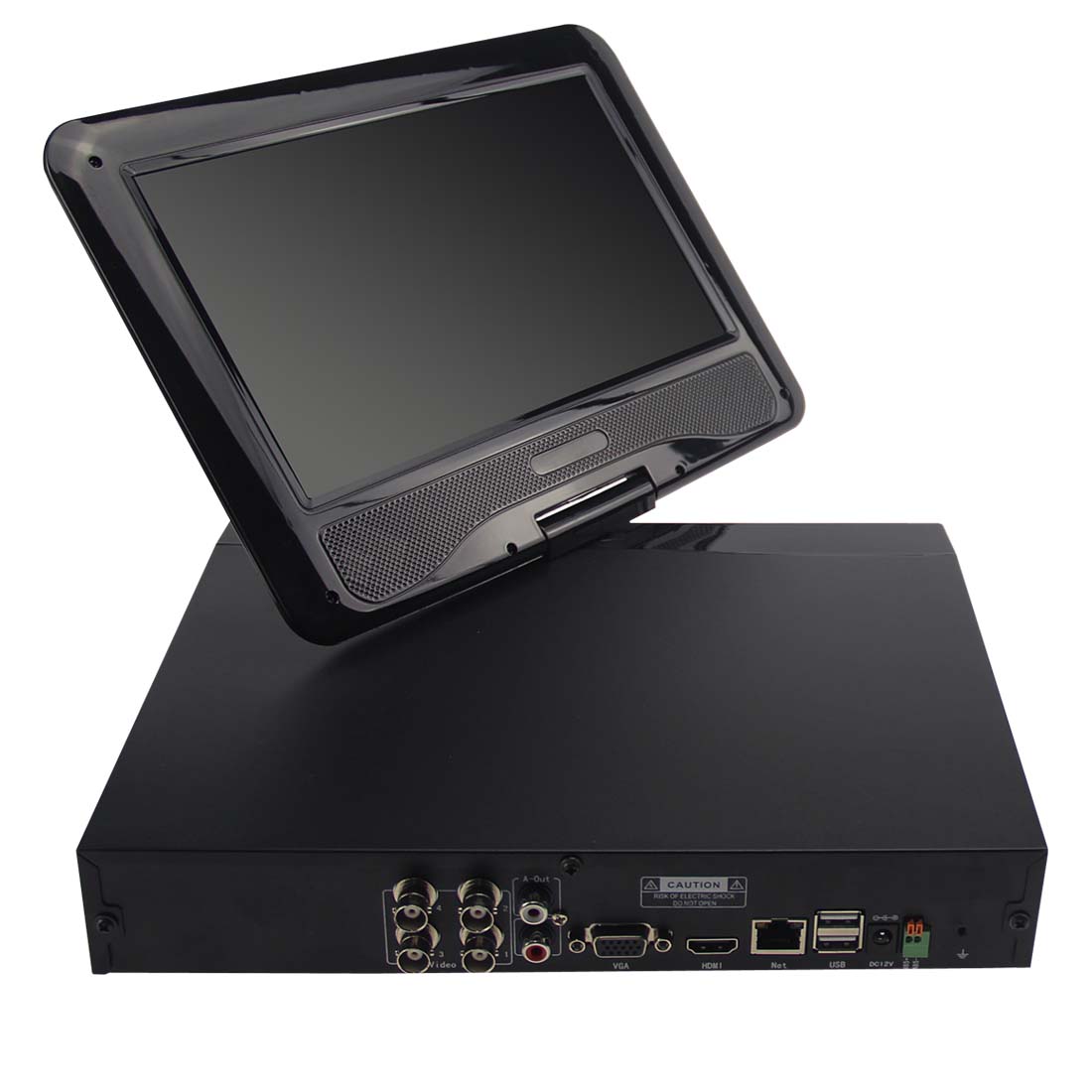

External Interface

Video input

4ch BNC

Video output

1ch VGA, 1ch HDMI

Loop Vout

N/A

Audio I/O

4/1

Alarm I/O

N/A

Network interface

RJ45 10M/100M self-adaption

PTZ control

1*RS485, Support kinds of PTZ protocols

USB

3* USB 2.0 ports

HDD

1*SATA ports (Max4TB/per)

Wireless

N/A

General

Power supply

12V/3A

Power Consumption

<15W (without HDD)

Working environment

Temperature:0—+55,Humidity:10%—90%,
Atm:86kpa—106kpa

Dimension

280mm(L)* 225mm(W)* 45mm(H)

Weight

2.5Kg

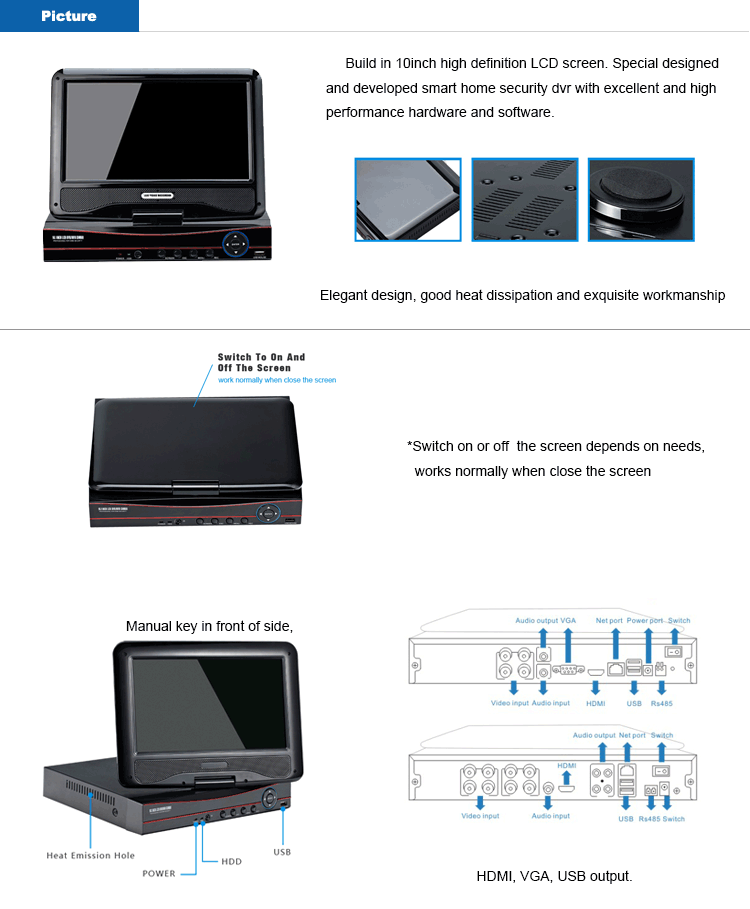

hd-dvr-manual_02

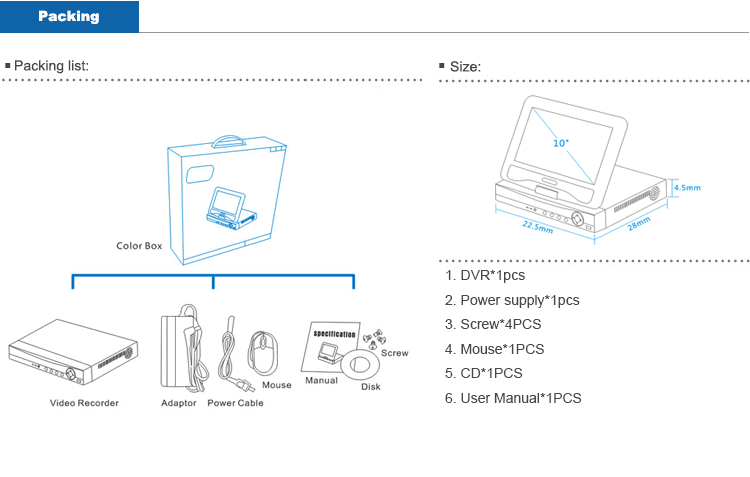

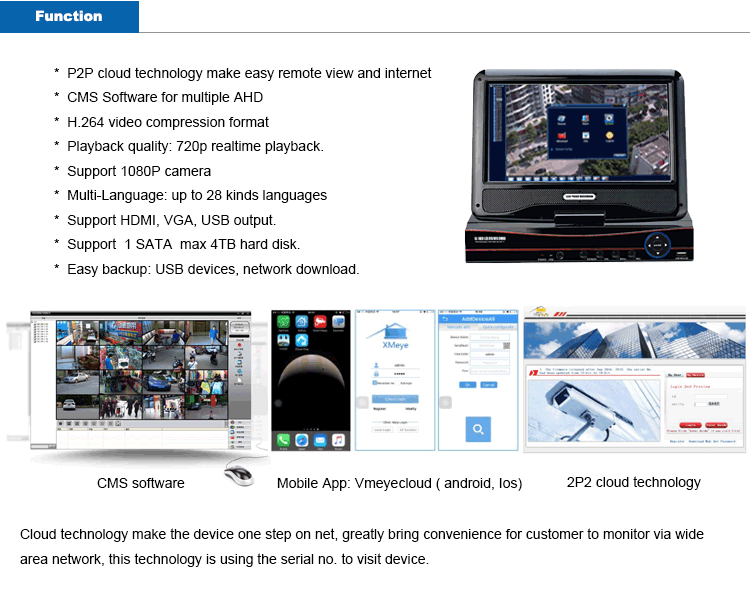

hd-dvr-manual_05hd-dvr-manual_07










Conditions and Terms:

  • The warranty starts from the delivery date from our factory;
  • During the warranty, any defective product will get repaired or replaced for free;
  • The warranty is unavailable for those products which are broken by the violence or the carelessness or repaired or altered without the authorization.
  • A RMA form will be asked to fill in.
