4ch h 264 dvr | AHD DVR 7INCH 4CH
- 4ch h 264 dvr | 7inch 4ch h 264 dvr
4ch 720P real time playback.

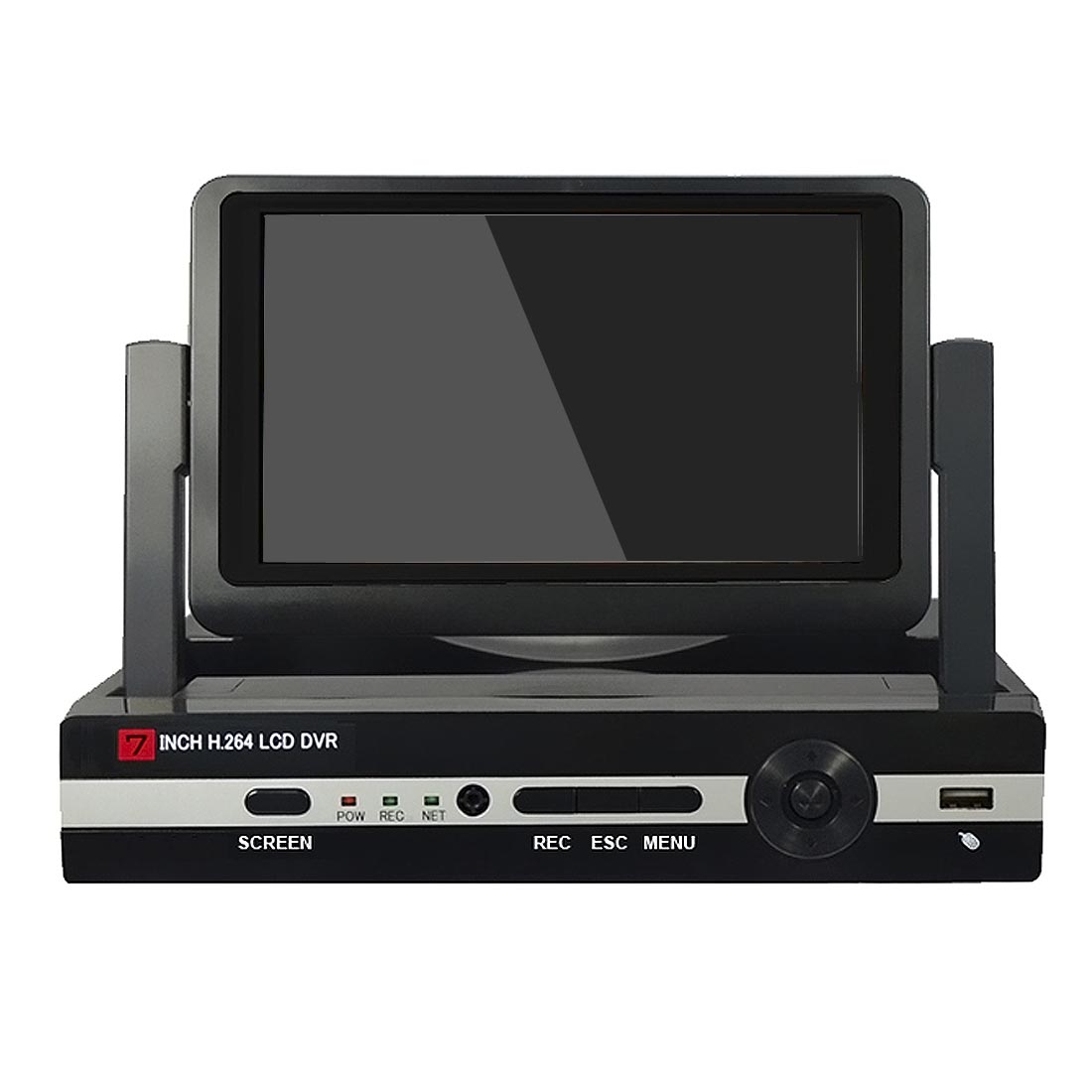

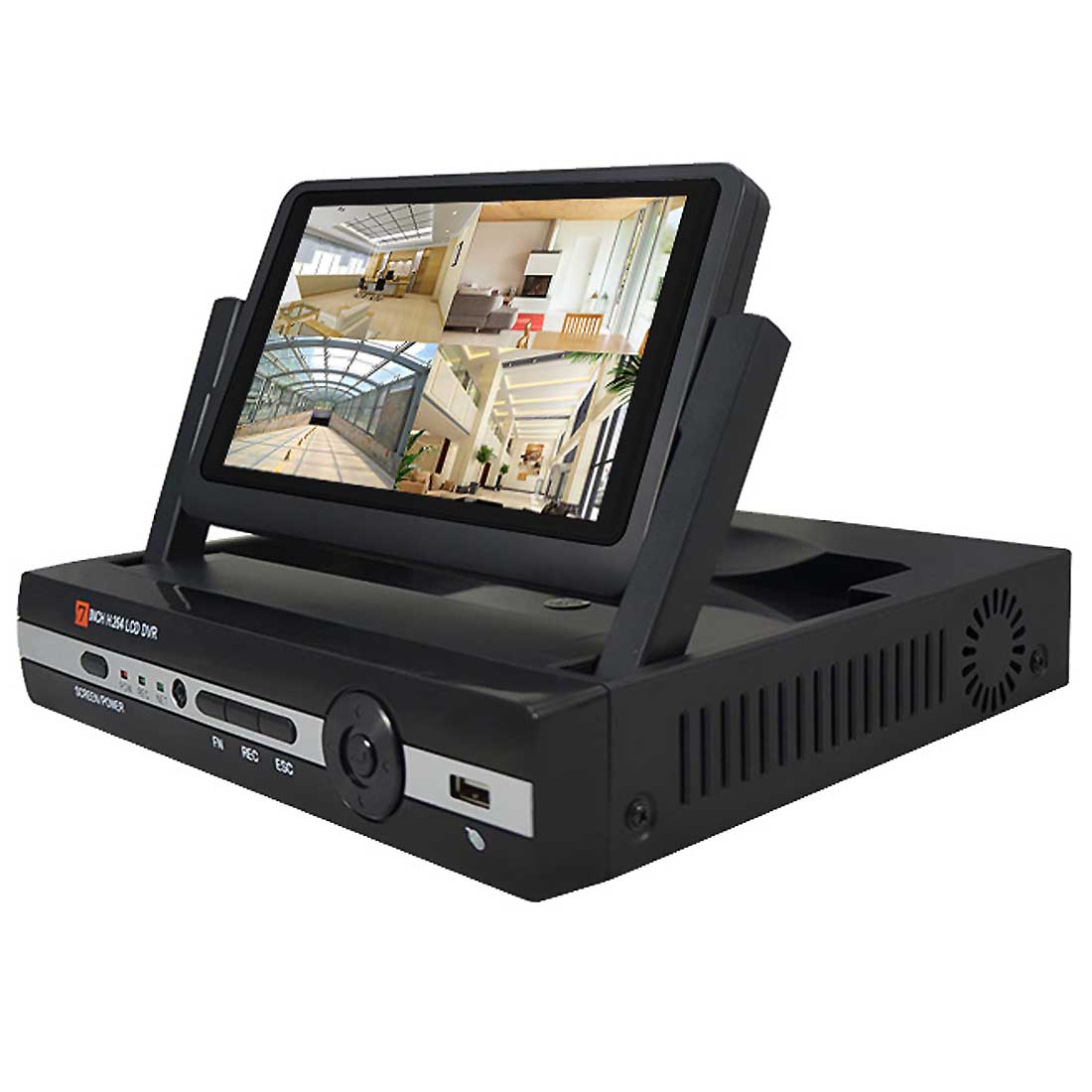

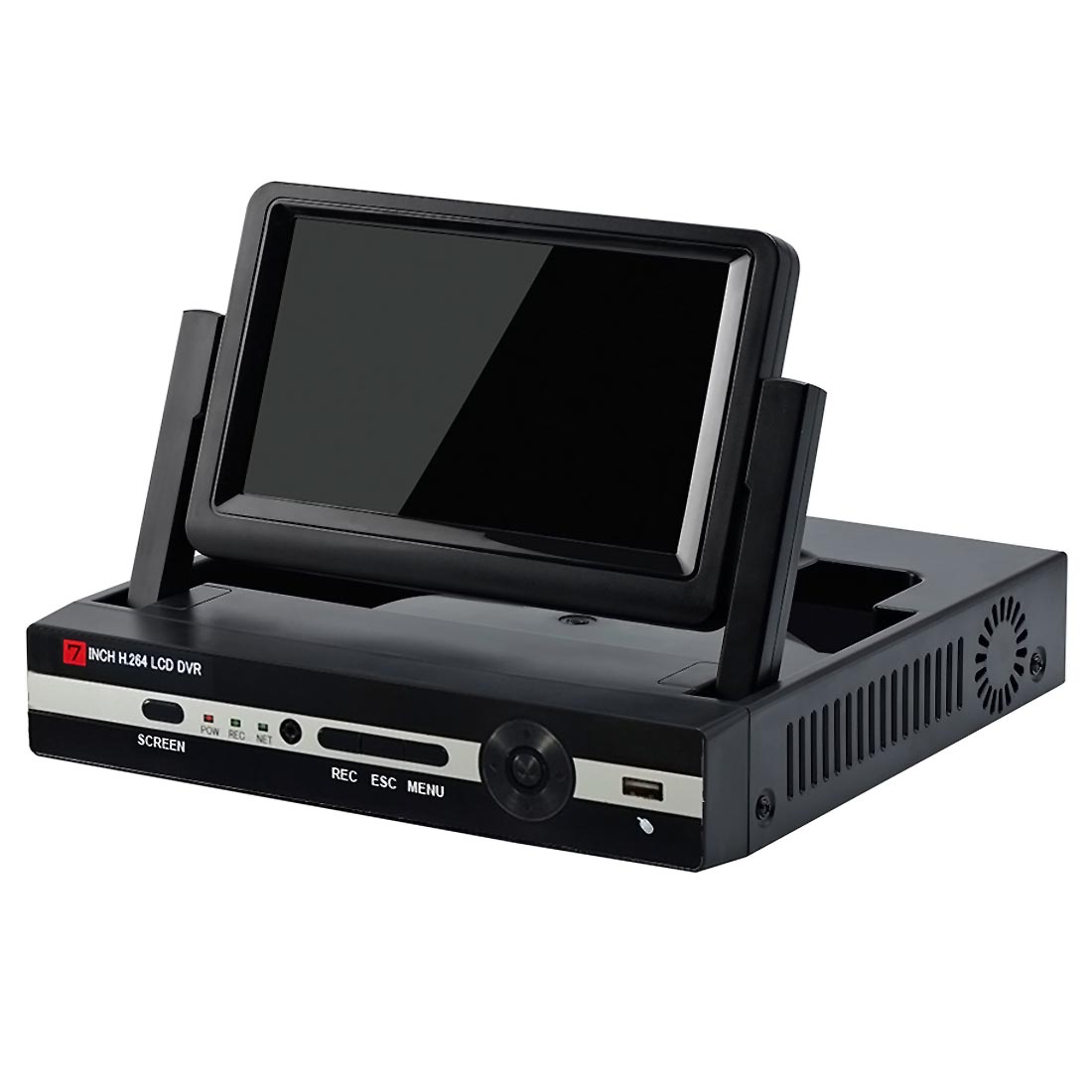

7inch lcd screen
Economy and good quality
HDMI, VGA output connect extra display
4ch h 264 dvr | 7inch 4ch h 264 dvr |7inch screen built in 4ch h.264 dvr
1080n Full HD dvr(fhd dvr) support 1080P camera
|
Feature: |
|
DC AHD DVR security system is special designed with 10.1" LCD monitor to realize review your footage easily on the built-in monitor which saves you huge cost for a separate monitor,Instant email alerts only when motion is detected, catching every essential moment, save hard drive record storage |
|
Specification: 4CH AHD DVR |
||
|
System |
Main processor |
Hi3520D |
|
Interface |
Preview |
4ch |
|
Video |
Code |
H.264(High Profile) |
|
Monitor quality |
HDMI |
|
|
Encode ability |
4*1080N/4*AHD-M |
|
|
Decode ability |
1*1080N/1*AHD-M |
|
|
Multi-mode input |
analog: 4*1080N;4*AHD-M;4*AHD-L; hybrid: 2*AHD-M(analog)+2*720P(network) Network only:4*720P;8*1080P;4*1080P;1*1080P;8*720P ; |
|
|
Motion Detection |
Each screen can be set to 192 (16 * 12) detection areas; |
|
|
Audio |
Audio compression |
G.711A |
|
Intercom |
support |
|
|
Record & playback |
Record mode |
manual>alarm>motion detection>timing |
|
Local Playback |
AHD-M/AHD-L/D1 |
|
|
Search mode |
Search by time, calendar, event, channel |
|
|
Storage & backup |
Video storage |
HDD, network |
|
Backup mode |
Network, USB hard disk, USB burner, SATA burner |
|
|
External Interface |
Video input |
4ch BNC |
|
Video output |
1ch VGA, 1ch HDMI |
|
|
Loop Vout |
N/A |
|
|
Audio I/O |
4/1 |
|
|
Alarm I/O |
N/A |
|
|
Network interface |
RJ45 10M/100M self-adaption |
|
|
PTZ control |
1*RS485, Support kinds of PTZ protocols |
|
|
USB |
3* USB 2.0 ports |
|
|
HDD |
1*SATA ports (Max4TB/per) |
|
|
Wireless |
N/A |
|
|
General |
Power supply |
12V/3A |
|
Power Consumption |
<15W (without HDD) |
|
|
Working environment |
Temperature:0℃—+55℃,Humidity:10%—90%, |
|
|
Dimension |
280mm(L)* 225mm(W)* 45mm(H) |
|
|
Weight |
2.5Kg |
|
MOQ:
- 1 pcs for sampe, buyer need pay it in advance, the amount will be deducted from next order
- 50 pcs after sample order, support mixed batch.
Warranty:
- 18 month, products with your own logo or without logo
Conditions and Terms:
- The warranty starts from the delivery date from our factory;
- During the warranty, any defective product will get repaired or replaced for free;
- The warranty is unavailable for those products which are broken by the violence or the carelessness or repaired or altered without the authorization.
- A RMA form will be asked to fill in.
